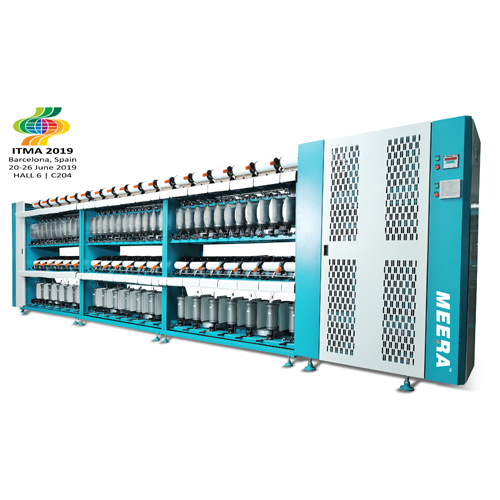

Embroidery Thread Twister


Our two for one twisters are widely used for polyester, nylon, PP and viscose yarn.Its gearless electronic tpm/rpm setting is very convenient. For all types of 'S' and 'Z' twist applications it is a wellknown brand in the market. Heat setting of twisted yarn provided by it is worth mentioning.

Application :-

  • Plyed yarn
  • Embroidry thread
  • Sewing thread
  • Fishnet yarn
  • Quilting thread
  • Salvage yarn
  • Tyre cord
  • Medical stitch yarn
  • Footware stitch yarn
  • Any S & Z twisting application

FEATURES :-

  • For all kinds of 'S' & 'Z' twist applications.
  • Available in 0.9 to 2.5 Kg. knot less package.
  • Suitable for polyester, Nylon, PP and Vescose yarn.
  • Gear-less electronic tpm/rpm setting.
  • Individual spindle brake.
  • Heat setting of twisted yarn in individual spindle.
  • Heat setting of twisted yarn, PLC/inverter controlled RPM, TPM, settings.

TECHNICAL SPECIFICATIONS :-

FRAME Double Deck on both the sides
MACHINE WIDTH 800 mm.
SECTION PITCH 1830 mm.
MACHINE HEIGHT 2100 mm.
DENIER RANGE 30to 450 denier
TWIST RANGE 100to 1500 t/m, yarm speed shall be set at max 90 mtrs. / min.
MOTOR PULLEY Set of 6000 to 12000 rpm.
SPINDLE BELT Endless belt with nylon core
ATTACHMENTS RPM, TPM, M / MIN display, yarn feed stop at yarn breakage, Anti-patterning device

SECONDARY Primary Seconday
SPINDLE PITCH 150 mm. 260 mm.
SPINDLE POT 70 mm. 110 / 130 mm.
SPINDLE / SECTION / DECK 24 14

NO. OF. SECTION 8 9 10 11 12 13 8 9 10 11 12 13
NO. OF SPL./ INDIVIDUAL MACHINE 384 432 480 528 576 624 224 252 280 308 336 364
CONNECTED LOAD KW. 3.7 5 5 7.5 7.5 9.3 7.5 7.5 9.3 9.3 11 11
LENGTH-FEETS 54'2" 60'2" 66'2" 72'2" 78'2" 84'2" 54'2" 60'2" 66'2" 72'2" 78'2" 84'2"
LENGTH-METERS 16.49 18.32 20.15 21.98 23.98 25.64 16.49 18.32 20.15 21.98 23.81 25.64

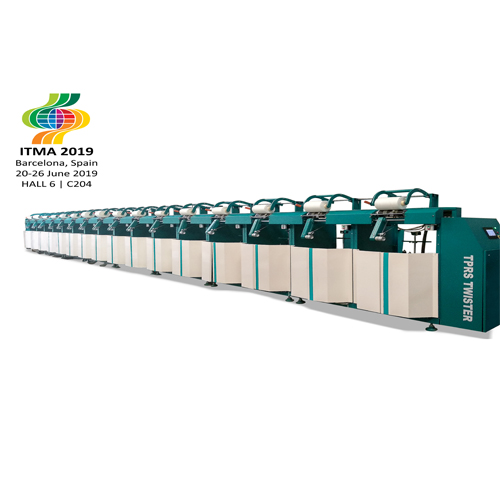

Industrial Thread Twister


Our Industrial Thread Twister are widely used for polyester, nylon, PP and viscose yarn.Its gearless electronic tpm/rpm setting is very convenient. For all types of 'S' and 'Z' twist applications, it is a well-known brand in the market. Heat setting of twisted yarn provided by it is worth mentioning.

Application :-

  • Plied yarn
  • Embroidry thread
  • Sewing thread
  • Fishnet yarn
  • Quilting thread
  • Salvage yarn
  • Tyre cord
  • Medical stitch yarn
  • Footware stitch yarn
  • Any S - Z twisting application

FEATURES :-

  • Suitable for polyester, Nylon, PP and Vescose yarn.
  • Individual spindle brake.

Product Details :-

FRAME Double Deck on both the sides
TWIST RANGE 100to 1500 t/m, yarm speed shall be set at max 90 mtrs. / min.
ATTACHMENTS RPM, TPM, M / MIN display, yarn feed stop at yarn breakage, Anti-patterning device

SECONDARY Primary Seconday
SPINDLE PITCH 150 mm. 260 mm.
SPINDLE POT 70 mm. 110 / 130 mm.
SPINDLE / SECTION / DECK 24 14

NO. OF. SECTION 8 9 10 11 12 13 8 9 10 11 12 13
NO. OF SPL./ INDIVIDUAL MACHINE 384 432 480 528 576 624 224 252 280 308 336 364
CONNECTED LOAD KW. 3.7 5 5 7.5 7.5 9.3 7.5 7.5 9.3 9.3 11 11
LENGTH-FEETS 54'2" 60'2" 66'2" 72'2" 78'2" 84'2" 54'2" 60'2" 66'2" 72'2" 78'2" 84'2"
LENGTH-METERS 16.49 18.32 20.15 21.98 23.98 25.64 16.49 18.32 20.15 21.98 23.81 25.64

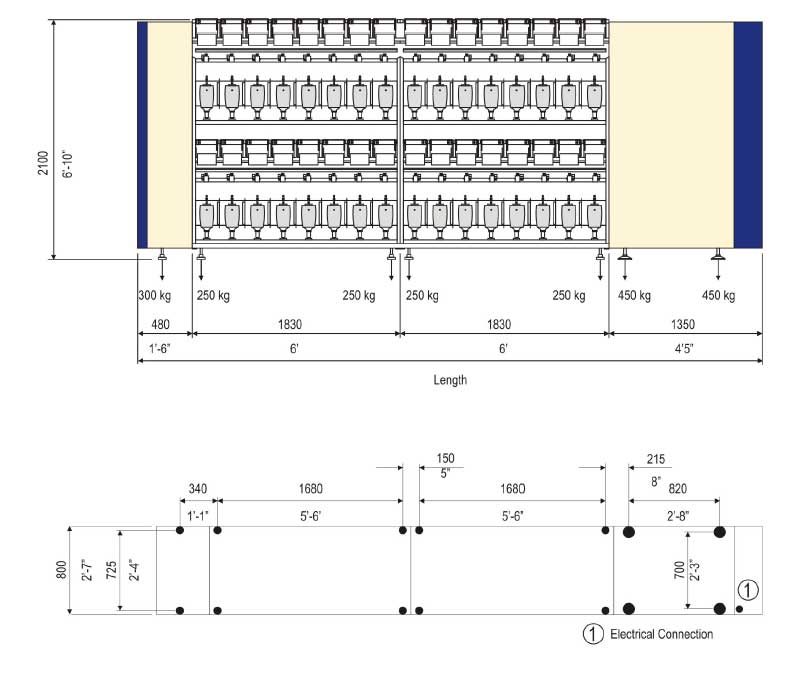

DIMENTIONS :-
